ThinkSystem ST650 V2 Tower Server

Last Updated on 04/04/2022 by DataWorld.xyz

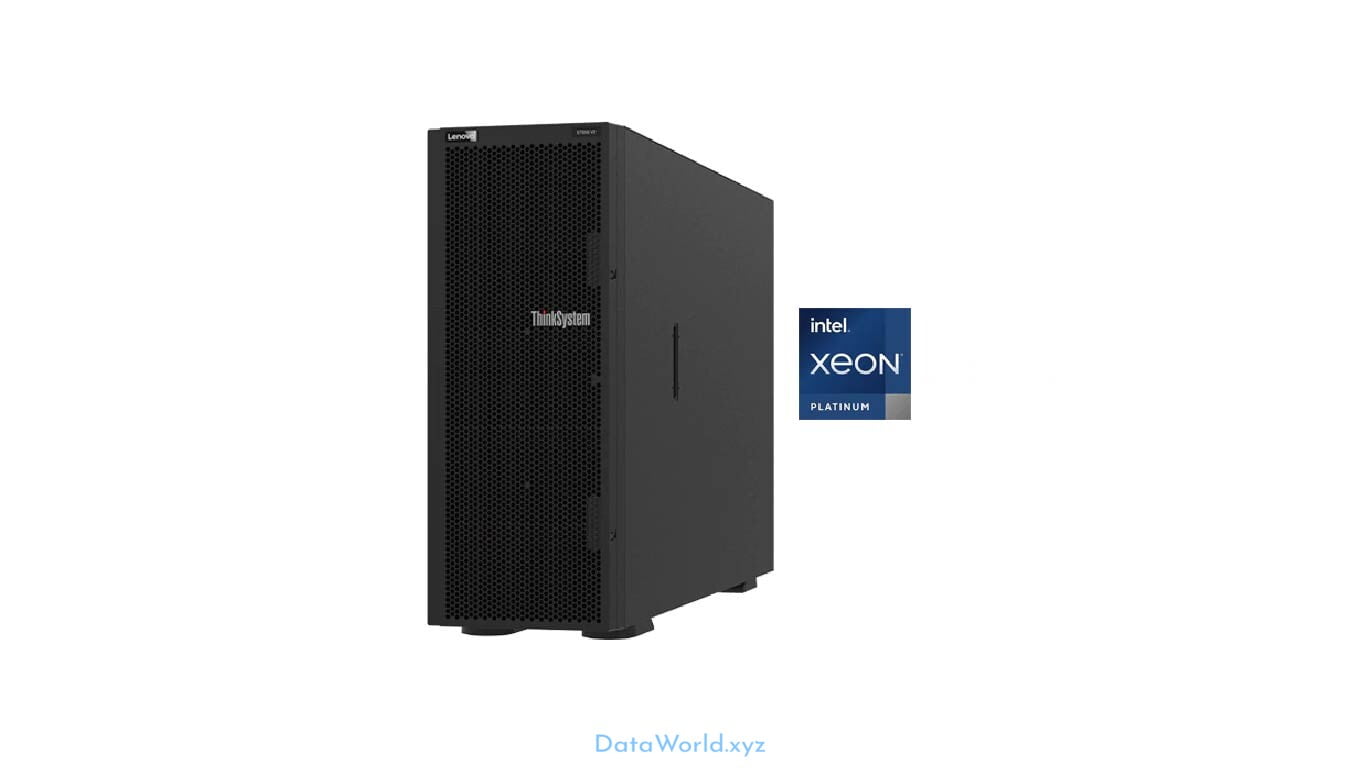

ThinkSystem ST650 V2 Tower Server

Enterprise performance and flexibility. Compact footprint. ThinkSystem ST650 V2 is a highly capable 4U tower server that provides the performance and reliability you expect from the data center, optimized for office environments.

ThinkSystem ST650 V2 Tower Server Tech Specs

ATTRIBUTE SPECIFICATION
Form Factor/Height 4U rackable tower
Processors Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 250W
Drive Bays Up to 32x 2.5″ bays (including 16 NVMe bays) or 16x 3.5″ bays (including 8 NVMe bays)
Memory Up to 4TB in 32x DIMM slots using 128GB DIMMs; 3200MHz TruDDR4; Up to 16x Intel® Optane™ Persistent Memory 200 Series module (PMem), installed in combination with system memory DIMMs
Expansion Slots Up to 8x PCIe 4.0 slots plus 1x PCIe 3.1 slot (with 2x processors)
Network Interface 2x 10GBASE-T ports; 1x 1GbE dedicated management port
Ports Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support

Rear: 4x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x external diagnostics handset port, 1x serial port

HBA/RAID Support SW RAID standard; optional HW RAID up to 32 ports, or SAS HBAs up to 16 ports
Power Dual redundant AC power supplies (750W, 1100W, 1800W, 2400W) Platinum and Titanium. Energy Star 3.0 compliant.
Systems Management Lenovo XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, XClarity Energy Manager centralized server power management
OS Support Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Security Lenovo ThinkShield, lockable security bezel, chassis intrusion switch, TPM 1.2/2.0
Reliability Predictive Failure Analysis, hot-swap/redundant drives, fans and power supplies
Limited Warranty 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
ITIC Global Reliability Report Specifications may vary depending upon region.

Features and Benefits

Workload-optimized support

The ThinkSystem ST650 V2 represents the next wave in highly configurable tower systems to support new use cases, technology, and workload optimization for the modern enterprise. New 3rd generation Intel® Xeon® processor Scalable family CPUs offer outstanding performance and memory capacity for large database and virtual machine deployments, with support for PCIe Gen4 networking reducing data bottlenecks throughout the IT environment.

 ThinkSystem ST650 V2 Tower Server

Accelerate data insights

ThinkSystem ST650 V2 is future proof with 8 single-width (DW), 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST650 V2 ideal for enterprise-class AI and VDI workloads bringing supercomputing power to the remote office.

 ThinkSystem ST650 V2 Tower Server

Configuration flexibility

Significant improvements in onboard storage capabilities enable the ST650 V2 to tackle immense data growth in burgeoning IT environments, notably in remote office and edge use cases. Support for up to 16 hyper-fast NVMe drives for a total of 32x 2.5-inch drives enables rapid data ingest capabilities to address the explosion of internet of things (IoT) devices and sensors feeding data growth. More
