Support HDMI 2.0b / DP 1.4b Dual Output

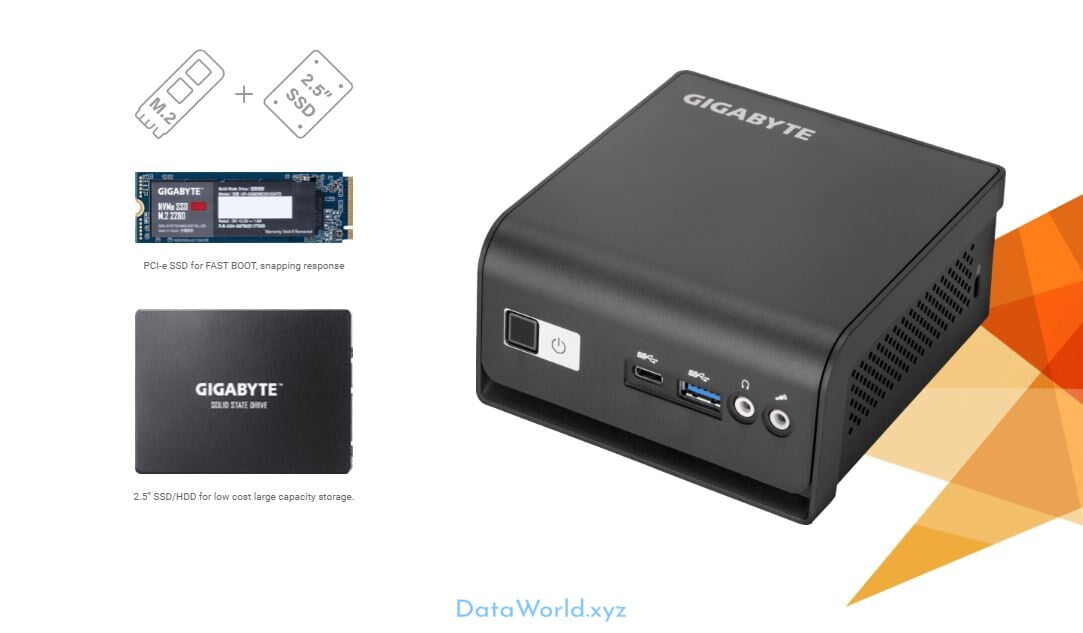

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1×2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity. Price in USD $ and BDT ৳ .
- Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
- 1st 10 nm small core CPU
- Support M.2 2280 slot for SSD (support PCI-e x2+SATA)
- Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
- 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
- Realtek 8111HS Gigabit LAN
- HDMI 2.0b support [email protected] HDR10
- mDP 1.4b support [email protected] HBR2
- Realtek ALC255 Codec
- 4 x USB 3.1 (1 x USB Type-C)
- Headphone Jack
- Mic-phone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter : 100-240V input, 19V 65W
- OS Support : Microsoft Windows 10 64Bit and other os
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
